Slitting machines are industrial systems designed to divide wide rolls of material into narrower strips with controlled widths. They are commonly used in metal processing, paper production, plastic film manufacturing, packaging, textiles, and other industries that require consistent material dimensions.
Slitting machines support material conversion by transforming large rolls into formats suitable for subsequent manufacturing processes.
The basic process involves feeding a continuous sheet or web through a system of rollers and cutting tools. Depending on the material and machine configuration, the cutting method may use rotary knives, razor blades, or shear-cutting assemblies. The finished strips are then collected on separate winding shafts or transferred to another production stage.
How Slitting Technology Developed
Slitting technology developed alongside the growth of industrial roll processing. As manufacturers began handling larger quantities of sheet metal, paper, and flexible materials, they needed reliable methods for dividing wide material into smaller sections without excessive waste or inconsistent dimensions.
Mechanical cutting systems gradually became more specialized. Modern slitting machines may include programmable controls, tension regulation, automatic positioning, and sensors that help operators maintain stable production conditions.
Main Types of Slitting Machines
Different materials and production requirements call for different machine designs.
Rotary shear slitting machines use two circular knives that pass one another to cut materials such as metal sheets and certain heavy films.
Razor slitting machines use sharp blades and are commonly associated with thin plastic films, lightweight laminates, and similar flexible materials.
Crush cutting machines press a blade against a hardened roller or anvil, making them suitable for selected paper, nonwoven, and flexible material applications.

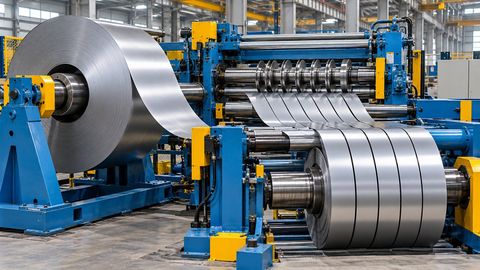

Metal coil slitting lines process wide metal coils into narrower strips, often using multiple circular knives and recoiling equipment.

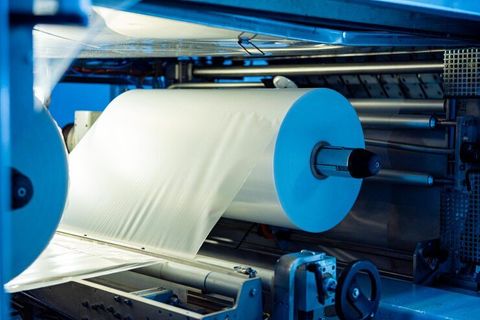

Paper and film slitting rewinders combine cutting and winding operations to produce narrower rolls for downstream use.
The choice of equipment depends on material thickness, hardness, elasticity, required width, surface sensitivity, and production speed.
Importance
Why Precision Slitting Matters
Slitting accuracy affects how materials perform during later manufacturing stages. Strips that vary in width, have uneven edges, or contain unwanted wrinkles can create difficulties during stamping, printing, laminating, packaging, and automated assembly.
Precision engineering helps control these variations through accurate blade positioning, stable roller alignment, appropriate tension, and consistent material feeding. These factors can reduce rejected material and improve the repeatability of finished rolls.
Industries That Use Slitting Equipment
Slitting machines support several industrial sectors, each with different material requirements.
Metal fabrication uses slit steel, aluminum, and other sheet materials in stamping, forming, and component manufacturing.
Packaging production converts plastic films, paper, and laminates into widths suitable for wrapping and packaging lines.
Electrical manufacturing processes selected metal foils and films used in insulation systems and component production.
Paper converting prepares paper rolls for printing, labeling, stationery, and other applications.
Textile production uses slitting equipment for selected fabrics, technical textiles, and nonwoven materials.
Automotive manufacturing uses converted materials in interior components, insulation, protective layers, and related applications.
Common Production Challenges
Manufacturers must manage several factors to maintain reliable slitting performance. Incorrect tension can cause wrinkles, stretching, telescoping rolls, or uneven winding. Worn blades can produce rough edges, burrs, dust, or inconsistent cuts.
Other challenges include knife alignment, material thickness variation, static electricity in plastic films, and differences in surface friction. Effective process monitoring helps operators identify these problems before they affect large quantities of material.
Recent Updates
Automation and Digital Control
During 2024–2026, industrial converting equipment has continued to incorporate greater automation and digital monitoring. Modern slitting machines may use programmable logic controllers, touchscreen interfaces, automated knife positioning, and electronic tension controls.
These features can help operators establish repeatable settings and reduce manual adjustments. Their practical value depends on the machine design, material characteristics, operator training, and integration with the wider production line.
Sensors and Quality Monitoring
Sensors can measure variables such as web tension, roll diameter, line speed, and material position. Some systems also use machine vision or optical measurement to detect visible defects and monitor edge alignment.
When connected to production monitoring systems, these measurements can help identify process changes and support maintenance planning. However, sensor availability and inspection capabilities vary between equipment models.
Energy Efficiency and Material Utilization
Manufacturers are also examining energy use, material waste, and changeover efficiency in roll-processing operations. Accurate knife positioning, appropriate machine settings, and planned production sequences can reduce unnecessary trimming and setup losses.
For thin films and coated materials, improved tension control can help limit stretching and deformation. In metal processing, careful tool selection and clearance adjustment can help manage burr formation and edge quality.
Comparison of Cutting Methods
Cutting method | Typical materials | Main consideration |
|---|---|---|
Rotary shear | Metal coils, heavier sheet materials | Knife clearance and edge deformation |
Razor cutting | Thin films, flexible laminates | Blade sharpness and web stability |
Crush cutting | Selected papers and nonwovens | Roller pressure and material structure |
Precision rotary cutting | Films, foils, coated materials | Tool geometry and alignment |
No single cutting method suits every material. Testing under representative operating conditions may be necessary when selecting equipment for a new application.
Laws or Policies
Industrial Machinery Safety
Slitting machines contain rotating shafts, cutting blades, nip points, and moving winding components. These features can create serious hazards if guards, interlocks, emergency stops, or operating procedures are inadequate.
Manufacturers and operators should follow the machinery safety requirements applicable to their location and industry. Risk assessments generally consider access to cutting zones, maintenance activities, electrical hazards, unexpected movement, and safe material handling.
Worker Protection and Machine Operation
Workplace safety frameworks commonly address machine guarding, training, protective equipment, maintenance, and emergency procedures. Operators should understand how to load material, adjust settings, clear faults, and isolate equipment before maintenance.
Lockout and isolation procedures are particularly important when workers need to access moving components or cutting assemblies. Stopping a machine through its normal controls may not eliminate all stored electrical, pneumatic, hydraulic, or mechanical energy.
Quality and Product Requirements
Slitting operations may also need to comply with customer specifications and relevant industry standards. Requirements can cover strip width, thickness, edge condition, surface cleanliness, roll diameter, packaging, and traceability.
For metal coils, material certificates and inspection records may support downstream quality control. For packaging materials, additional requirements may apply when the converted material is intended for food-contact applications or other regulated uses.
The specific obligations depend on the material, final application, destination market, and applicable regulations.
Tools and Resources
Measurement and Inspection Equipment
Accurate measurement helps verify whether slit material meets the required dimensions. Common inspection tools include digital calipers, micrometers, steel rules, width gauges, and optical measurement systems.
For metal strips, operators may inspect burr height, edge straightness, thickness, and surface defects. For films and paper, relevant checks can include width variation, wrinkles, winding consistency, coating damage, and visible contamination.
Machine Setup and Process Calculations
Slitting operators may use basic calculations to plan production and verify equipment settings. For example, the number of strips depends on the usable web width, required strip width, and any edge-trim allowance.
A simplified planning relationship is:
Number of full-width strips = usable material width ÷ required strip width, rounded down to a whole number.
For example, a usable web width of 1,200 mm divided into 100 mm strips can produce 12 strips before accounting for additional process limitations. Actual production layouts may require further adjustments for knife spacing, trim requirements, and machine configuration.
Maintenance and Production Records
A structured maintenance record can help identify recurring issues and support consistent machine operation. Useful records include:
Blade installation and replacement history.
Knife clearance and alignment measurements.
Tension and line-speed settings.
Material type, thickness, and batch identification.
Width inspection results and edge-quality observations.
Fault reports and corrective maintenance activities.
Changeover time and material waste measurements.
Digital production systems can organize these records and make it easier to compare performance across shifts or production batches. Their usefulness depends on accurate data entry and consistent inspection practices.
FAQs
What is a slitting machine used for?
A slitting machine divides wide rolls of material into narrower strips for further manufacturing. Common materials include metal, paper, plastic film, foil, and selected textiles.
How do metal coil slitting machines work?
Metal coil slitting machines feed a wide coil through circular cutting knives positioned at selected intervals. The knives divide the material into narrower strips, which are then recoiled for transportation or subsequent processing.
Which factors affect slitting machine precision?
Precision depends on blade condition, knife alignment, cutting clearance, material thickness, web tension, roller alignment, and machine stability. Consistent setup and inspection help control dimensional variation.
What is the difference between razor slitting and rotary shear slitting?
Razor slitting uses a blade to cut thin, flexible materials, while rotary shear slitting uses overlapping circular knives. The appropriate method depends on the material, required edge quality, and operating conditions.
What maintenance do slitting machines require?
Routine maintenance may include inspecting blades, checking alignment, cleaning rollers, examining bearings, verifying safety devices, and monitoring tension controls. Maintenance schedules should follow equipment instructions and applicable workplace procedures.
Conclusion
Slitting machines play an important role in converting wide rolls of metal, paper, films, and other materials into narrower strips for industrial production. Precision engineering, appropriate cutting methods, stable tension, and accurate alignment influence dimensional consistency and edge quality. Automation and digital monitoring continue to support process control, while safety procedures and regular maintenance remain essential. Equipment selection and operating requirements depend on the material, production specifications, and intended application.
